Description:
Mishimoto is proud to announce the release of our Baffled Oil Catch Can. With over a year of research and development time, Mishimoto has created the most effective oil catch can on the market. The Mishimoto Baffled Oil Catch Can was designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. Custom grooves in the catch can inlet turbulates the air longer and ensures all the oil sinks to the bottom of the can, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions.
The 100% billet, 6061 aluminum can accepts AN fittings at the inlet, outlet, and drain area allowing over 27 possible configurations. For maximum fitment options, the top cog mounting setup allows the can to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. The can is also 100% washable, unlike many other cans that require you to replace your filtration system. The Mishimoto Baffled Oil Catch Can is available in a variety of colors as well, so it will be sure to match your style and taste!
The Mishimoto Baffled Oil Catch Can is the most advanced oil catch can on the market. This video highlights all the features and benefits that their engineers designed to ...
Specifications:
Overall Height = 6.00 (without fittings)
Overall Diameter = 3.06 (without fittings)
Inlet = M20 x 1.5 (for accepting -10AN)
Outlet = M20 x 1.5
Drain Plug Thread Size = M20 x 1.5
Capacity = 9 fl oz.
Assembled Weight = 1.6lbs (0.73kgs)

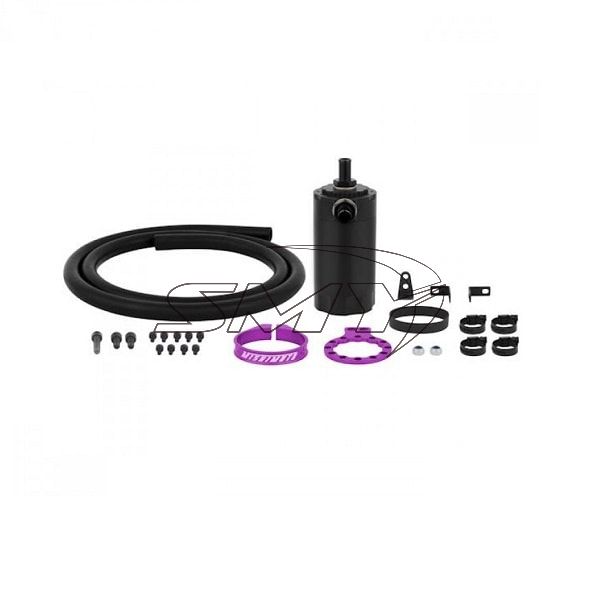

What Is In The Box:
1 Black, Anodized 6061 Aluminum Catch Can
2 Aluminum Mounting Brackets
1 Bronze Filter
1 Internal Baffle
3 Dowty Oil Seals
2 Push-on Fittings
1 Drain Plug
1 6’ Black Rubber Oil Line
4 Worm-gear Clamps
1 Black Rubber Band
Mounting Hardware Brackets
Limited Lifetime Warranty
Applications:
Universal
Color | Purple |
---|---|
Manufacturer | Mishimoto |
Price | 376.41 |
Sales Price | 282.95 |
-
