Killer B Motorsports Cast Performance Oil Pan w/ High Flow Pickup & Baffle WRX / STI

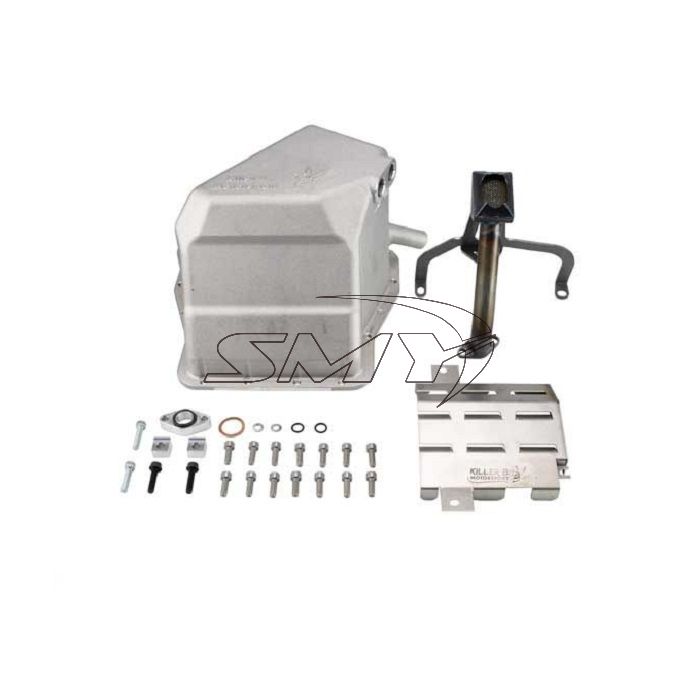

This is the Killer B Motorsport 3-Piece Cast Performance Oil Pan, Ultimate Oil Pickup, and Baffle Combination. This could very well be the ultimate oiling solution in the EJ25 platform. This combination addresses a common failure point in the EJ engine which is the factory oil pickup. The factory oil pickup is prone to cracking which will suck air into the engine rather than oil to the pivotal internal lubrication points. When this happens, the engine will fail. Not only do you get one of the highest flowing oil pickups in the industry with super durable construction, but you also get the Killer B Motorsport Windage Tray AND the Killer B Motorsport Oil Pan to go along with the pickup. This is ideal for those who participate in road racing, rally racing, or even drag racing as the windage tray prevents the oil from sloshing under heavy cornering, braking, or acceleration. Additionally, the Killer B Motorsport Oil Pan will host an additional 40% increase in oil capacity. This is ideal for those of you with race cars, or high-powered streetcars that enjoy the occasional weekend track event, or spirited canyon run. Below, are details of each component included in this three-piece set.

Oil Pan Features:
- Precision cast double heat-treated aluminum alloy construction for maximum durability
- 3D CAD designed and tested for extreme performance
- Solid baffle prevents starvation
- Up to a 40% increase in oil capacity
- Fits most equal length headers, including the Killer B Headers
- Designed with (1) M20 port and (1) 1/2 NPT port
- Track tested and proven

Ultimate Pickup Features:
- High-strength DOM steel construction
- 3X thicker than the OEM oil pickup
- Highest flowing EJ oil pickup
- Free-flowing mandrel bends
- High-strength double gusset
- Ported internal passages
- Enlarged inlet with anti-funneling geometry
- OEM-spec screen
- CNC lasered, forming, and machining assembly
- TIG-welded
- New O-ring seal

Oil Baffle Windage Features:
- Closed rear section to prevent oil from sloshing into the crank under hard acceleration and aggressive shifts.
- Block contoured profile to minimize oil returning from the heads interfering with the crank
- Directional louvers prevent oil in the pan from splash/sloshing into the crank.
- Low profile design to control windage and strip oil from the crank immediately to reduce oil “roping” on the crank.
- Improved oil entry to the pan/pickup to help prevent oil starvation.
- Made from stainless steel for long life, durability, and corrosion resistance.

2002-2007 WRX
2004-2007 STI
2008-2014 STI
2015-2021 STI
2004-2008 Forester XT
2005-2009 Legacy GT
2005-2009 Outback XT

More Information
Color Stainless Steel
Manufacturer Killer B Motorsport
Price 659.00
