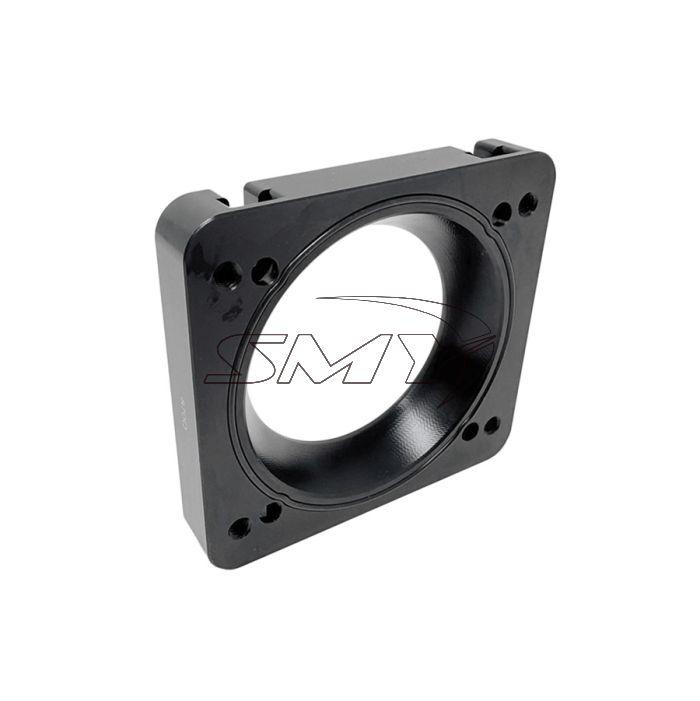

Torque Solution Big Bore 76mm Throttle Body Adapter Black Subaru 2006-2014 WRX / 2004-2021 STI

Torque Solution Big Bore 76mm Throttle Body Adapter for Subaru EJ engines using a standard bore intake manifold. Our adapter allows you to swap to a Toyota 76mm big bore throttle body which provides a 25% increase in size over OEM. Made from CNC billet aluminum that we anodize for corrosion resistance, provide o-ring gaskets for a leak free seal, and all the necessary hardware to complete the install.

Features:
- CNC'd 6061 Billet Aluminum
- Anodized For Added Corrosion Resistance
- O-ring Gaskets For A Leak Free Seal
- Confirmed Manifold Fitments = Subaru STI OEM, Torque Solutions, Cosworth, AMS
- Confirmed Big Bore TB = Toyota 22030-0S010 / 220300S010 & Toyota 22030-0F010 / 220300F010
- Anodized = Black

Includes:
- Billet Spacer (1)
- Large O-ring (2)
- Small O-ring (4) (holds m6x20 screws in place on spacer)
- M6-1.0 x 20 Low Profile Zinc Socket Cap Bolt (4) (bolts spacer to IM)
- M6-1.0 x 50 Stainless Steel Socket Cap Bolt (4) (bolts the TB to the spacer)
- M6 Zinc Flat Washer (4) (For TB to spacer)
- Rivet (7) (to rivet the OEM TB motor to the big bore TB)
- M4 Nylock Nut (used as rivet spacer tool for center of motor cover near harness plug to TB)

Important Notes:
- Intended for high HP builds.
- First consult with your tuner to ensure they will be able to make this TB setup work for you.
- You must swap over the motor from a Subaru DBW throttle body found on a 2006-21 STI, 2006-07 WRX, and 2004-08 Forester XT.
- Must have FMIC piping. (piping modification may be necessary)
- You will need a new transition coupler and clamp to fit the big bore TB (3.5") to your piping.
- You will need an aftermarket MAP sensor and relocate it to the intake manifold or a vacuum block.
- You will need to have your tuner adjust your tune for the big bore TB and aftermarket MAP sensor.

Applications:
2006-2007 Subaru WRX
2004-2007 Subaru STI
2008-2014 Subaru WRX
2008-2014 Subaru STI
2015-2021 Subaru STI
2004-2008 Subaru Forester XT
