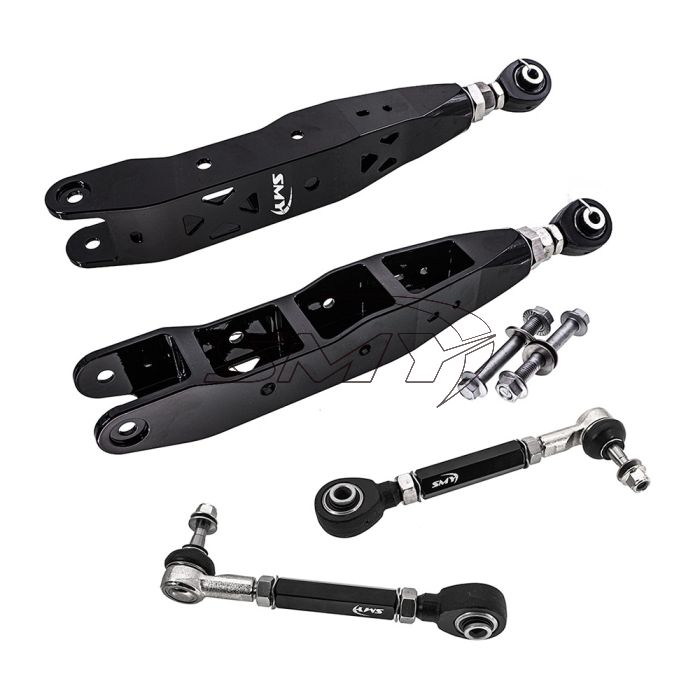

SMY Stealth Pillow Ball CNC Aluminum Adjustable Rear Control Arm / Toe Kit 2008-2021 WRX / STI

SMY Performance
Special Price $558.00 Regular Price $620.00
Reward PointsEarning $18 In Rewards for this item

Instructions

Quick Overview

Sales Ends In

Here you will find the upgraded SMY LCR kit. Our previous version was made from Steel. This new version has been completely reworked, resigned, and over-engineered to allow us to offer a LIFETIME warranty. CNC from high-grade aluminum, ours is lighter than the previous-gen (all Steel) by 2lbs each. The bushings have been upgraded to a thicker more robust to prolong life as well as comfort.

Features:
- Material = Aluminum
- Adjustable Pillowball Ends
- Bushings Durometer Rating = 80
- The Collar Extensions on the Control Arms were removed and replaced with a longer body to increase strength overall
- Color = Gloss Black
- Location = Lower Rear
- Control Arms Camber Adjustment Range = +12mm to -12mm
- Control Arms have NEW Stronger Mounts
- Toe Arms Adjustment Range = +/- 3 Degrees
- UPGRADED Control Arm Ends STRONGER Better Same Price

Includes:
- 2 x Aluminum Rear Control Arms (1 Pair)
- 2 x Steel Toe Arms (1 Pair) = SMY-SUS-TOE-GR
- Hardware
- SMY Decals
- Lifetime Warranty

Installation:
- Control Arm Endlink bolts = 34 Foot-lbs
- Control Arm All 3 other points = 89 Foot-lbs
- Toe Arms Subframe Side = 74 Foot-lbs
- Toe Arms Other End = 44 Foot-lbs
- Alignment is highly Recommended after installation

Applications:
2008-2014 WRX
2008-2014 STI
2015-2021 WRX
2015-2021 STI
2013-2020 BRZ
2022-2025 BRZ

More Information
Part #SMY-SUS-CTK-CNC-GR
UPC371127280102
ColorBlack
Country of ManufactureUnited States
Weight LBS20.000000
Length20
Width8
Height6
