RADIUM Fuel Pulse Damper / In-line Kits - Universal

The opening and closing of fuel injectors creates pressure pulses in the fuel rail; this can lead to unstable fuel pressure. In order to achieve a safe and consistent rail pressure, a fuel pulse damper (FPD) is often necessary. The FPD's internal diaphragm will absorb oscillating pulses and stabilize fuel pressure. This correction can be measured throughout the RPM range and can often help idle surge, especially with high flow injectors. Furthermore, a fuel pulse damper can help solve erratic lean air/fuel ratio spikes, commonly experienced as 'stumbling', that are difficult to tune out. Fuel pulse dampers can be mounted at any angle, including upside down. There are many variables that dictate if a fuel system requires fuel pulse dampers. For instance, there are cases where multiple dampers are necessary. There are also other times when the fuel system benefits with a fuel pulse damper on the return line. This product is safe for use with all fuel types including alcohol blends such as E85.

Damper Choice:
- FPD-R base pressure requirement = 40 - 70psi (static)
- FPD-XR base pressure requirement = 40 - 105psi (static)

Features:
- 8AN ORB versions seal using a FKM O-ring
- The 3/8" NPT variations seal with the tapered pipe threads (sealant should be used)
- Because 20-0178 and 20-0179 use tapered threads (NPT), the vacuum port can be clocked to the desired location during tightening
- Even after tightening, the newest 8AN ORB dampers (20-0776 and 20-0777) will swivel. This allows the vacuum port to be clocked 360 degrees.

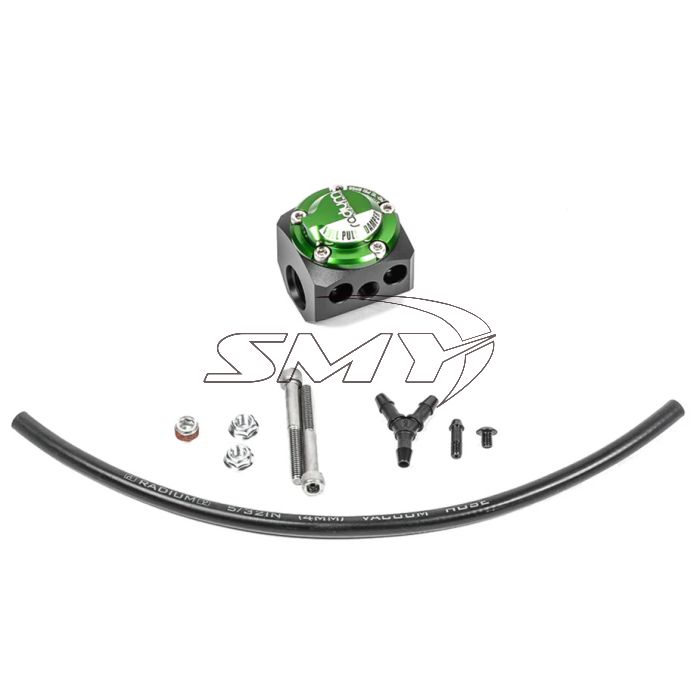

Includes:
- Anodized and laser engraved aluminum top, R=range or XR=extra range
- Anodized aluminum body with male threads, 8AN ORB or 3/8" NPT
- Stainless steel hardware
- Rubber vacuum hose, 4mm ID
- Vacuum hose Y-fitting

Applications:
Universal
