Diode Dynamics SS3 LED Fog Light Kit for 2015-2021 WRX / STI

Description:
Upgrade the fog lights on your Subaru WRX with our SS3 Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included round bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

Features:
- Direct replacement for Subaru WRX fog lamps
- SAE-compliant road-legal output
- Includes round bezel, for factory-style appearance
- Plug and play, no modification needed
- Advanced TIR optics provide high efficiency and focus
- Durable powdercoated aluminum die-cast
- Engineered and Assembled in USA

Specs:
- Main Beam Power (watts): Sport: 14.5, Pro: 36, Max: 38.5
- Backlight Power (watts): 0.4
- Main Beam Current (amps @ 12.8V): Sport: 1.1, Pro: 2.7, Max: 3 Backlight Current (amps @ 12.8V): 0.03
- Operating Voltage: 9-30V
- Datasheet(s) (click to download): SS3 Sport White Round, SS3 Sport Yellow Round, SS3 Pro White Round, SS3 Pro Yellow Round, SS3 Max White Round, SS3 Max Yellow Round
- Beam Angle: Fog, 80°x8°
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
- Connector(s): Deutsch DT Input
- Driver Features: Constant Current
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
- Cooling: Passive, Pin-Fin heatsink
- Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
- Intrusion Ratings: IP69K Waterproof, High Pressure

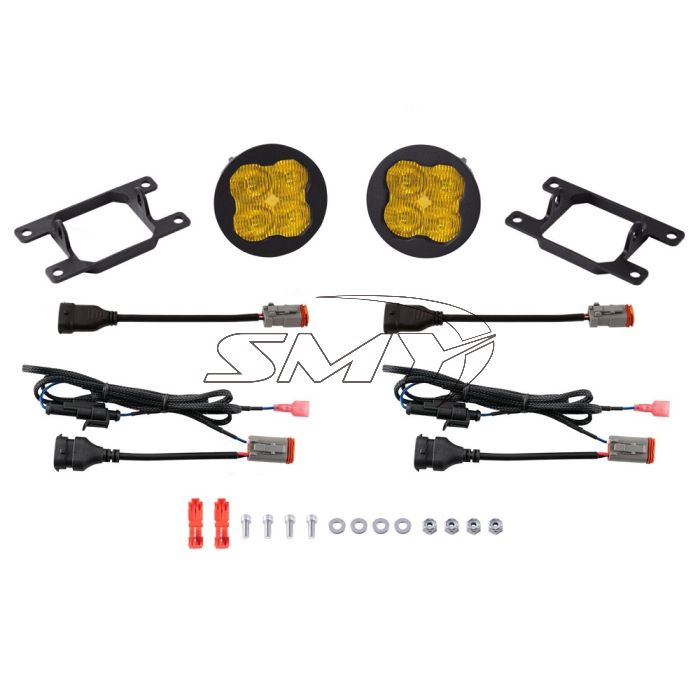

Includes:
- Two (2) SS3 3” Round LED Pods
- Two (2) Type A brackets
- Two (2) H11 2-pin DT adapters
- One (1) H11 4-pin DT backlight tap wire kit
- Mounting hardware
- Mounting guide

Applications:
2015-2021 WRX
2015-2021 STI
