SMY Stealth 26mm Front and 24mm Rear Sway Bar w/ Endlinks & LCA Kit 2022-2025 WRX

Reward PointsEarning $40 In Rewards for this item

Instructions

Quick Overview

Description:
The SMY Stealth Line was created to maximize all or your Subaru's handling without compromising the comfort. Allowing your car to eat up curves and help you maneuver effortlessly around town or the track. Keep your self planted and safe while driving.  OEM Front Sway bar is 23.5mm / OEM Rear is 19mm.

Features:
- Solid 26mm 2-point adjustable front sway bar
- Front Bushings w/ Brackets that have built-in grease ports
- Solid 24mm 3-point adjustable rear sway bar
- Rear Bushings w/ Brackets that have built-in grease ports
- Both Front and Rear Sway Bars have built in Collars
- Heavy Duty Adjustable Front M12 Endlinks
- Heavy Duty Adjustable Rear M12 Endlinks
- Heavy Duty Adjustable Toe Arms
- CNC Adjustable Aluminum Control Arms
- Powder-coated black for extra protection and Stealth Look
- Torque Specs = 34 ft-lb to Endlinks

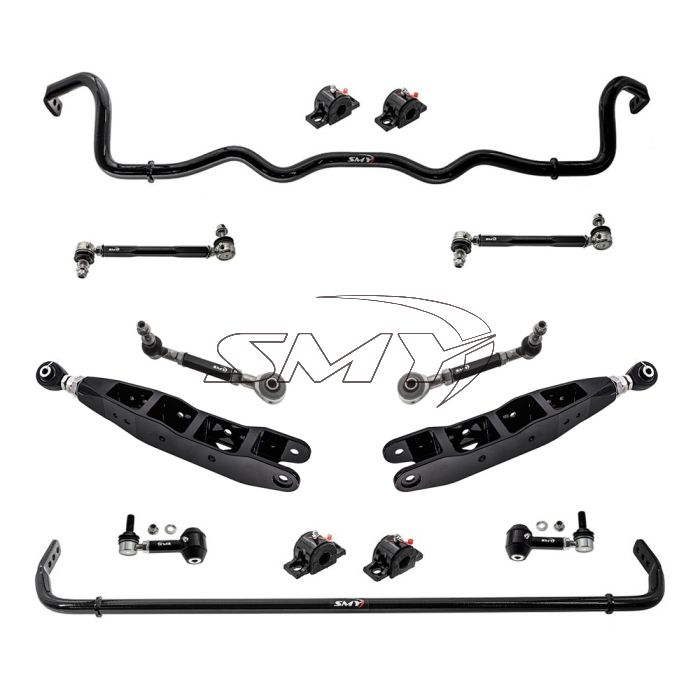

Includes:
- 1 x SMY-SUS-SBF26VB
- 1 x SMY-SUS-SBR22VB
- 1 x SMY-SUS-VBFE
- 1 x SMY-SUS-REB
- 1 x SMY-SUS-CTK-CNC
- Lifetime Warranty

Installation:
- Control Arm Endlink bolts = 34 Foot-lbs
- Control Arm All 3 other points = 89 Foot-lbs
- Toe Arms Subframe Side = 74 Foot-lbs
- Toe Arms Other End = 44 Foot-lbs
- Alignment is highly Recommended after installation
- Front and Rear Endlinks should add grease into ports after installation and wiped clean

Applications:
2022-2025 WRX

More Information
Part #SMY-SUS-VBPK2B
UPC371127279953
ColorBlack
Country of ManufactureUnited States
Weight45.000000
Length48
Width10
Height10
