Mishimoto Oil Cooler Kit Silver 2008-2014 STI

Mishimoto
Special Price $533.95 Regular Price $626.59
Reward PointsEarning $18 In Rewards for this item

Instructions

There are no file attachments for this product.
Sales Ends In

Description:
The Subaru WRX STI provides a great balance of power, handling, and reliability. As with any vehicle, controlling fluid temperatures will ensure consistent power and engine longevity. The Mishimoto Subaru WRX STI Oil Cooler Kit is a great addition to any street or track STI. A large 19-row cooler mounts in the front bumper to provide optimal airflow and cooling efficiency. The included direct-fit mounting brackets and preassembled stainless steel lines with -10AN fittings will ensure an easy and hassle-free installation. This cooler is proven to reduce oil temperatures by 20+°F (16+°C) degrees while maintaining minimal pressure loss. For further heat protection this kit includes thermal reflective wrap for the oil lines, providing substantial heat deflection from the nearby exhaust. The Mishimoto Subaru WRX STI Oil Cooler Kit can be customized to meet your needs with either a Stealth Black or Sleek Silver cooler and your choice of the Mishimoto Oil Sandwich Plateor the Mishimoto Thermostatic Oil Sandwich Plate. As with all our products, this kit includes the Mishimoto Lifetime Warranty.

Features:
- 20+°F (16+°C) temperature drop
- Minimal pressure loss
- Direct fit for the STI
- This oil cooler kit retains the use of your stock liquid to liquid oil cooler unit
- Increase In Oil Capacity
- .65 Quarts (0.615L)
- Temperature Difference

- 50+°F (34+°C)
- Pressure Drop
- 3-4 PSI

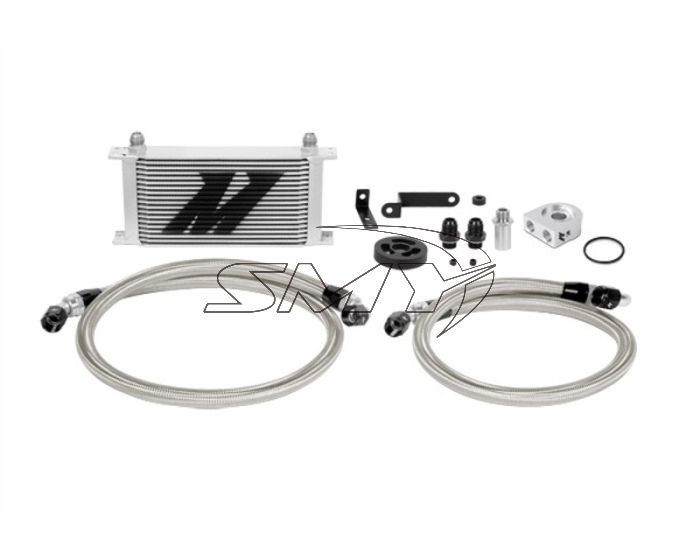

Includes:

3x Application Specific Mounting Brackets and Spacer
1x19-Row Oil Cooler (silver or black)
1x 2ft, 11in Stainless Steel Braided Hose with 45-degree and 150-degree -10AN Fittings
1x 3ft, 6in Stainless Steel Braided Hose with 45-degree and 90-degree -10AN Fittings
1x M20 Thermostatic Sandwich Plate (Non-Thermostatic Available)
1x 15mm CNC Sandwich Plate Spacer
1x Application specific M20 Sandwich Plate Adapter
2x M20 x -10AN Straight Fittings
1x 2ft of thermal reflective wrap
1x Mounting Hardware Set

Notes:
Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.

Caution:
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact [email protected].

Applications:
2008-2014 STI

More Information
Part #MMOC-STI-08
UPC748354009644
ColorSilver
Country of ManufactureUnited States
Weight10.000000
Length18
Width15
Height9
